COUNTER TOP UNIT

ELFET -: CT1 COUNTER TOP Filter

Single stage water filter

Filter Media – Carbon KDF

Advantages:

  1. Easy to install- Fit most mixers
  2. Effective removal of a wide range of contaminants
  3. Cost effective
  4. Extend life and efficiency of carbon(GAC) filters
  5. Remains effective at higher water temperatures

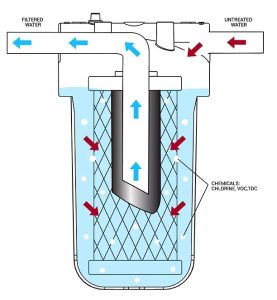

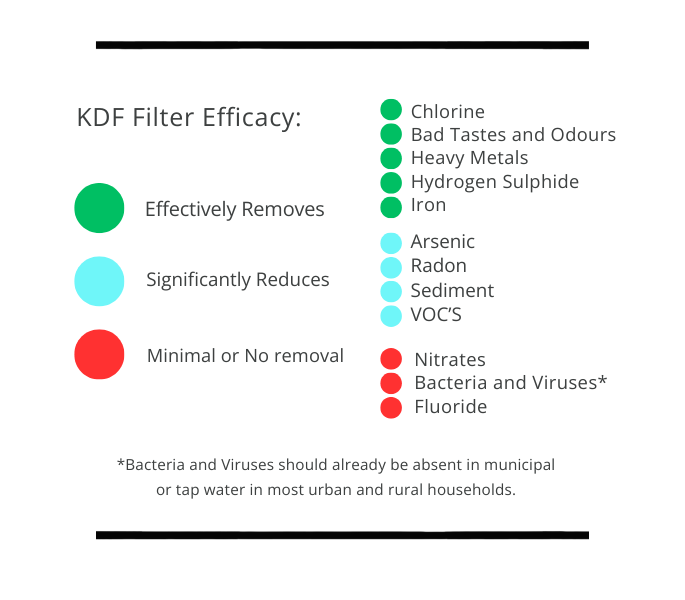

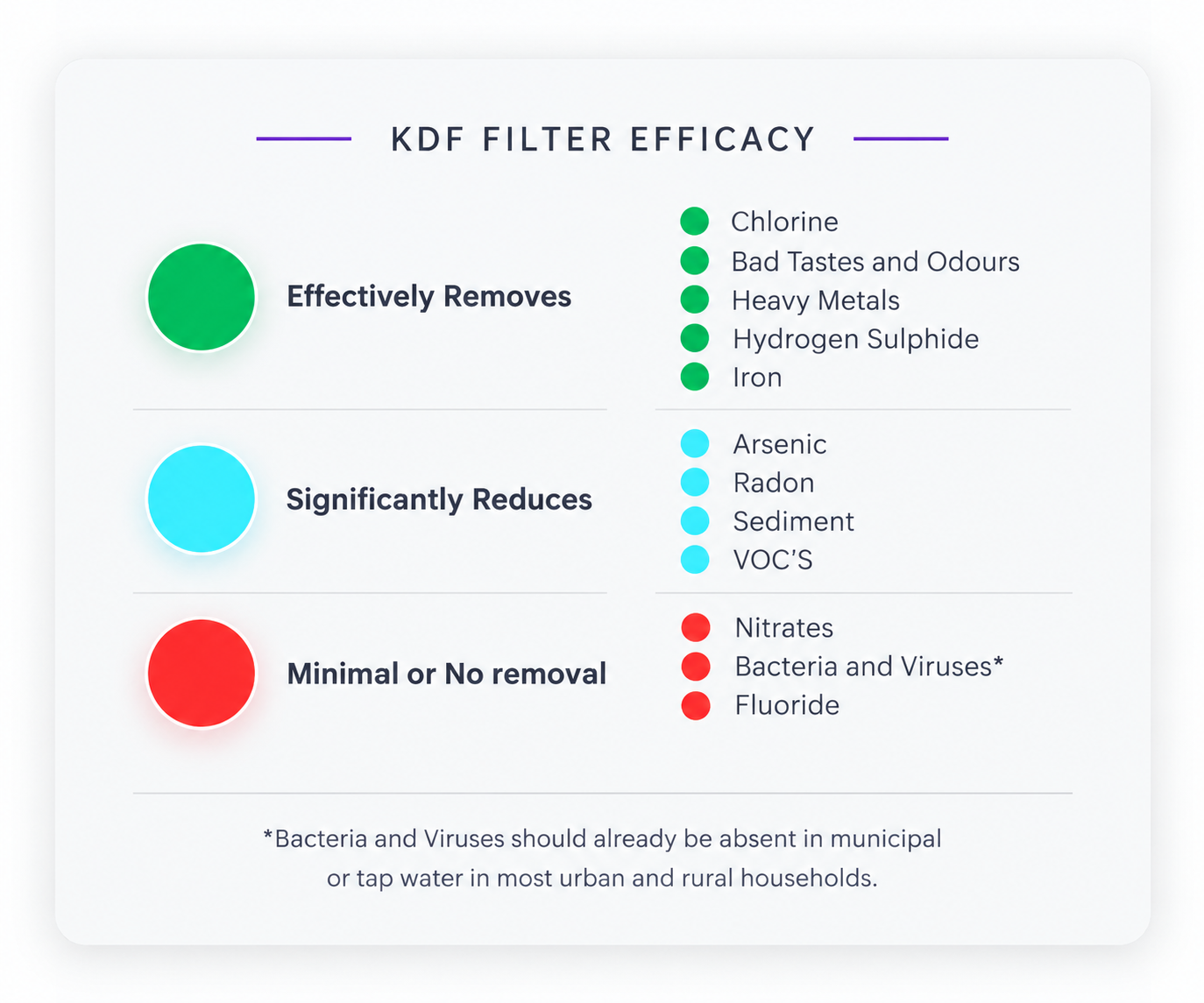

KDF Carbon Filter Properties

Kinetic Degradation Fluxion (KDF) is a high-purity copper-zinc formulation that uses a basic chemical process known as redox (oxidation/reduction) to remove chlorine, lead, mercury, iron, and hydrogen sulfide from water supplies.

The process also has a mild anti-bacterial, algaecitic, and fungicitic, effect and may reduce the accumulation of lime scale.

CT1

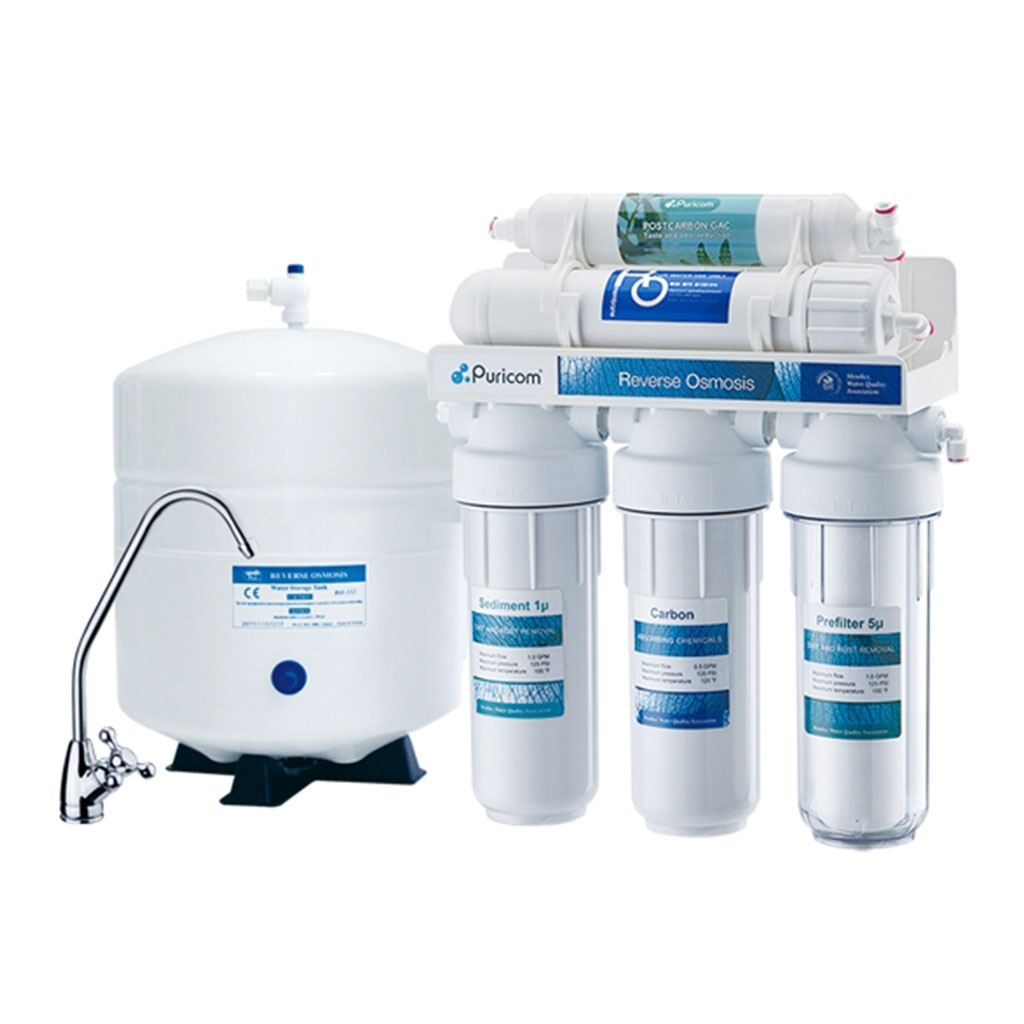

Under counter Unit

RO-406 - 5 Stage Filter System -10"

Karofi 5 stage Reverse Osmosis

75Gal membrane – Excludes pressure pump

Stage 1 – 5u Sediment Filter: App10-5 – 10”

Stage 2 – Carbon Block Slimline 5u: CB300-10-5 – 10”

Stage 3 – 1u Sediment Filter:  APP10-1 – 10”

Stage 4 – RO Membrane

Stage 5 – Carbon Filter – 10”

ELFET Branding

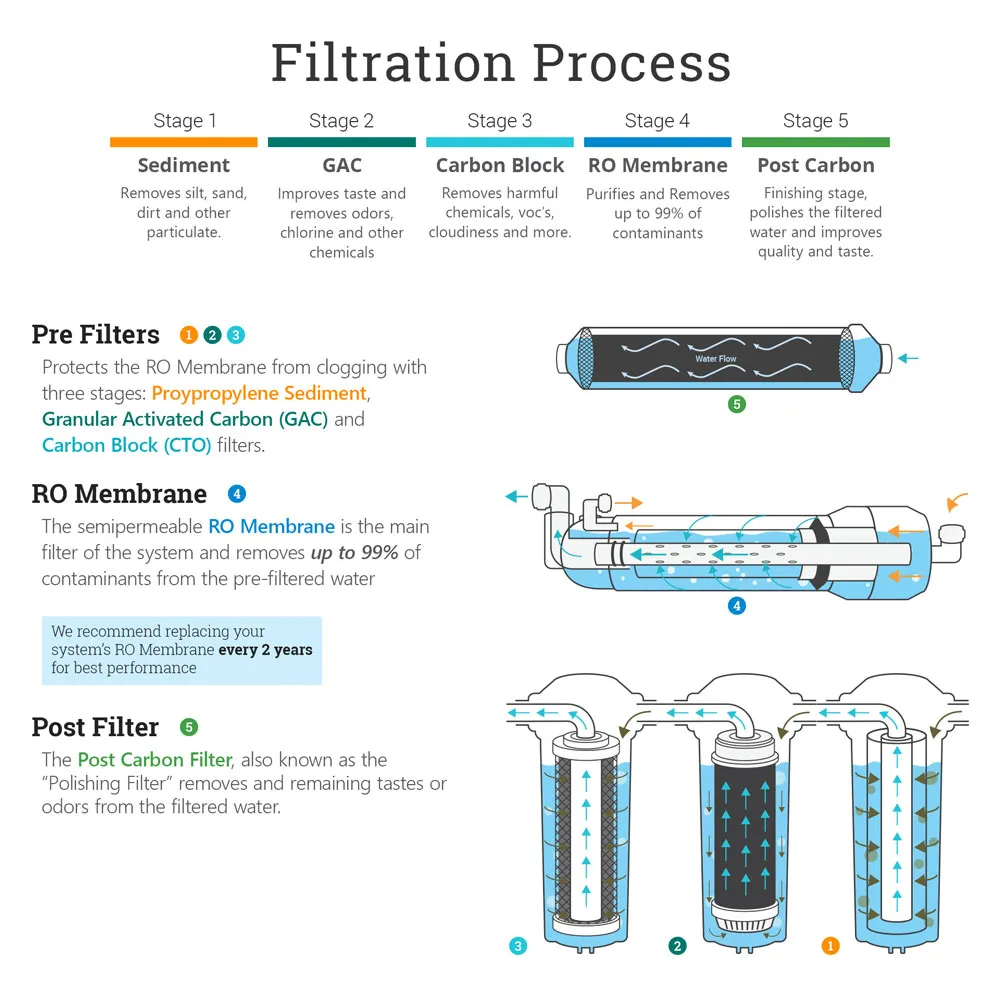

5-stage-flow-diagram

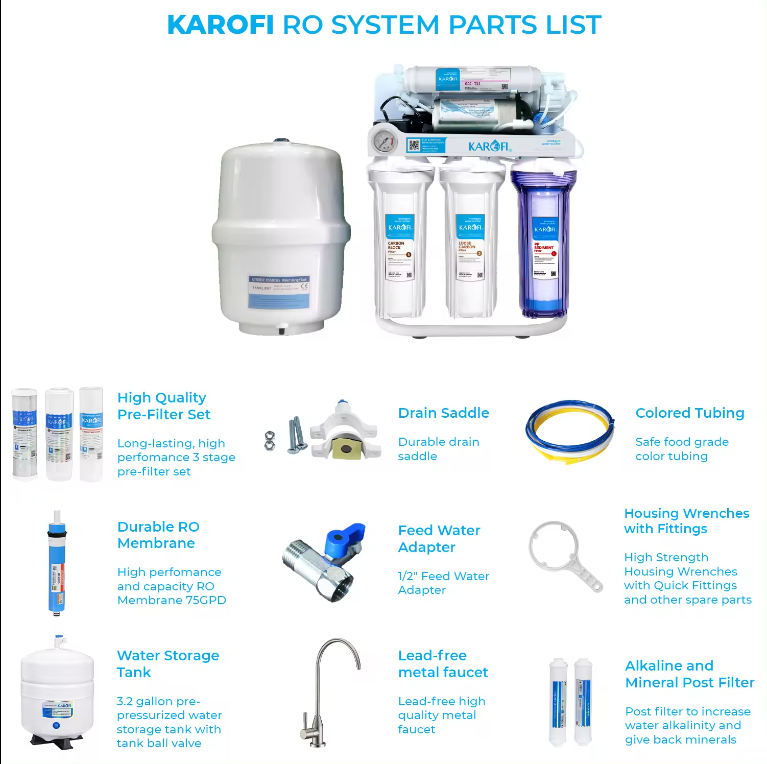

5 Stage RO system Parts List

Outdoor Whole House Filter

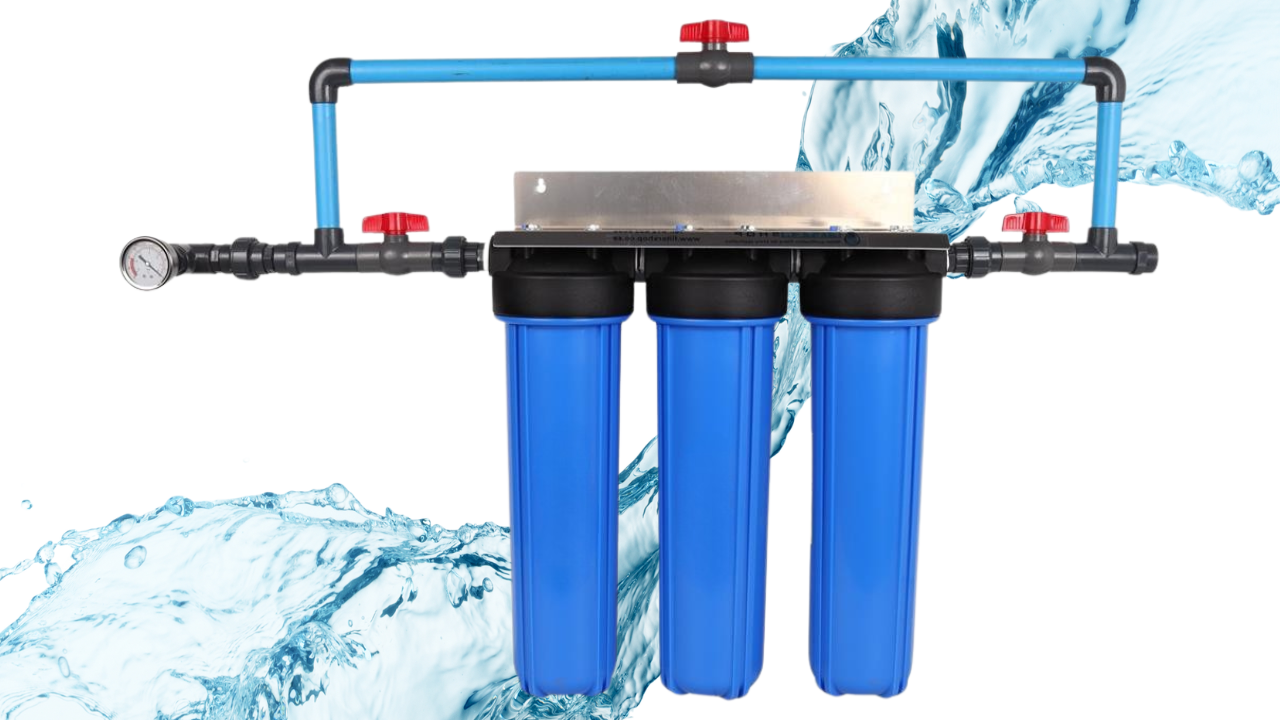

ELFET -: HF3 - BB20" Triple Filter

BBE3-20. 20" Big Blue Triple Filter with wall mount stand - incl Filters

Below configuration is standard factory issue. (See notes for recommended upgrade in brackets)

Stage 1 – 5u Particle Filter – Factory No1 (Suggest an upgrade)

Stage 2 – Carbon block filter 5u – Factory (move to filter position 1)

Stage 3 – 1u Particle Filter – Factory No3 (Suggest an upgrade)

 Fittings:  Wrench and 2 bolts included

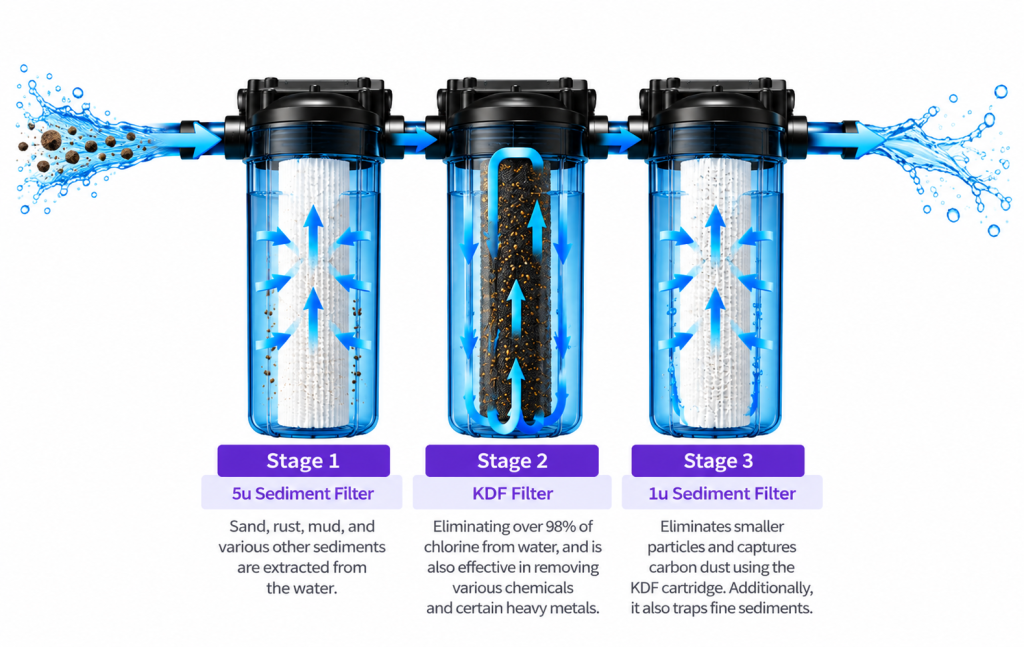

Three Stages Explained

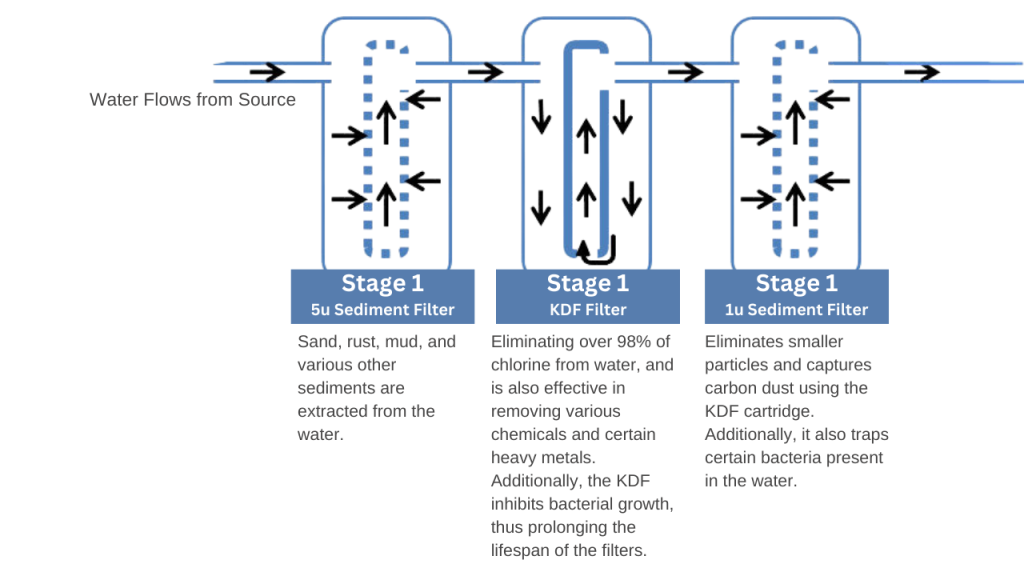

Flow diagram illustrating the water flow through the HF3-BB20″ triple filter

Cartridges and Filter Media

We offer a selection of consumables and optional extras for filters.

Filter media can be suggested according to water quality and filtration objectives

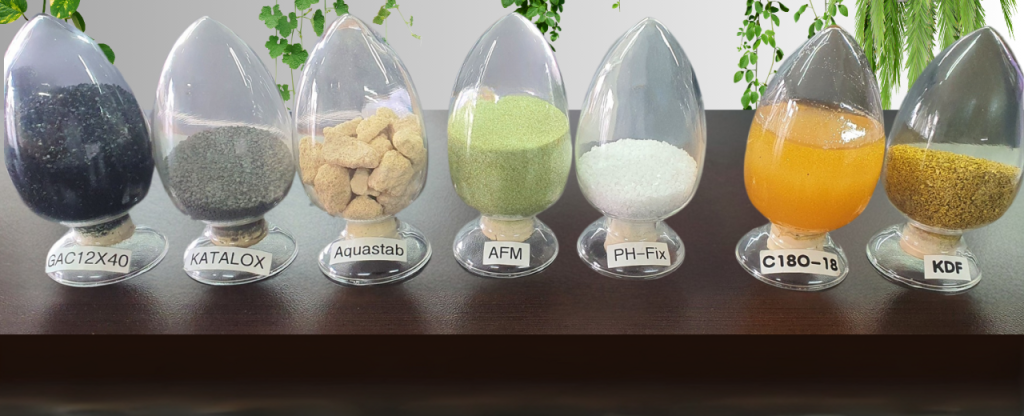

Filter media

Contact us at 011 025 8838 or sales@elfet for more information
